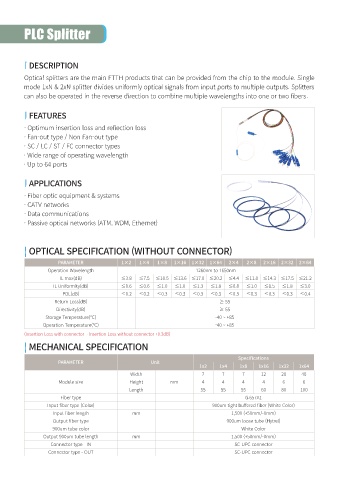

PLC Splitter

| DESCRIPTION

Optical splitters are the main FTTH products that can be provided from the chip to the module. Single
mode 1xN & 2xN splitter divides uniformly optical signals from input ports to multiple outputs. Splitters
can also be operated in the reverse direction to combine multiple wavelengths into one or two fibers.

| FEATURES

· Optimum insertion loss and reflection loss
· Fan-out type / Non Fan-out type
· SC / LC / ST / FC connector types
· Wide range of operating wavelength
· Up to 64 ports

| APPLICATIONS
· Fiber optic equipment & systems
· CATV networks
· Data communications
· Passive optical networks (ATM, WDM, Ethernet)

| OPTICAL SPECIFICATION (WITHOUT CONNECTOR)

PARAMETER 1×2 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32 2×64
Operation Wavelength 1260nm to 1650nm
IL max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2 ≤4.4 ≤11.0 ≤14.3 ≤17.5 ≤21.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8 ≤0.8 ≤1.0 ≤1.5 ≤1.8 ≤3.0
PDL(dB) ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Return Loss(dB) ≥ 55
Directivity(dB) ≥ 55
Storage Temperature(℃) -40 ~ +85
Operation Temperature(℃) -40 ~ +85
(Insertion Loss with connector = Insertion Loss without connector +0.3dB)

| MECHANICAL SPECIFICATION
Specifications
PARAMETER Unit
1x2 1x4 1x8 1x16 1x32 1x64
Width 7 7 7 12 20 40
Module size Height mm 4 4 4 4 6 6
Length 55 55 55 60 80 100
Fiber type G.657A1
Input fiber type (Color) 900um tight buffered fiber (White Color)
Input fiber length mm 1,500 (+50mm/-0mm)
Output fiber type 900um loose tube (Hytrel)
900um tube color White Color
Output 900um tube length mm 1,500 (+50mm/-0mm)
Connector type - IN SC-UPC connector
Connector type - OUT SC-UPC connector
