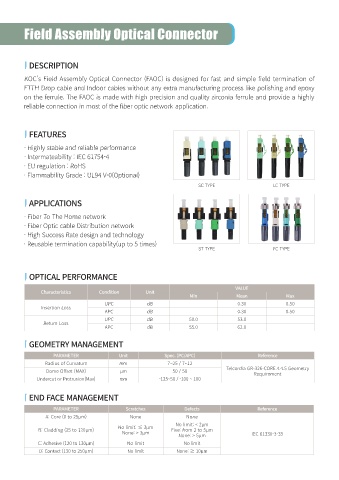

Field Assembly Optical Connector

| DESCRIPTION

KOC’s Field Assembly Optical Connector (FAOC) is designed for fast and simple field termination of
FTTH Drop cable and Indoor cables without any extra manufacturing process like polishing and epoxy
on the ferrule. The FAOC is made with high precision and quality zirconia ferrule and provide a highly
reliable connection in most of the fiber optic network application.

| FEATURES

· Highly stable and reliable performance
· Intermateability : IEC 61754-4
· EU regulation : RoHS
· Flammability Grade : UL94 V-0(Optional)
SC TYPE LC TYPE

| APPLICATIONS

· Fiber To The Home network
· Fiber Optic cable Distribution network
· High Success Rate design and technology
· Reusable termination capability(up to 5 times)
ST TYPE FC TYPE

| OPTICAL PERFORMANCE

VALUE
Characteristics Condition Unit
Min Mean Max
UPC dB 0.30 0.50
Insertion Loss
APC dB 0.30 0.50
UPC dB 50.0 53.0
Return Loss
APC dB 55.0 62.0

| GEOMETRY MANAGEMENT

PARAMETER Unit Spec. (PC/APC) Reference
Radius of Curvature mm 7~25 / 7~12
Telcordia GR-326-CORE.4.4.5 Geometry
Dome Offset (MAX) μm 50 / 50
Requirement
Undercut or Protrusion(Max) mm -125~50 / -100 ~ 100

| END FACE MANAGEMENT
PARAMETER Scratches Defects Reference
A: Core (0 to 25μm) None None
No limit: < 2μm
No limit: ≤ 3μm
B: Cladding (25 to 120μm) Five: from 2 to 5μm
None: > 3μm IEC 61330-3-35
None: > 5μm
C: Adhesive (120 to 130μm) No limit No limit
D: Contact (130 to 250μm) No limit None: ≥ 10μm
