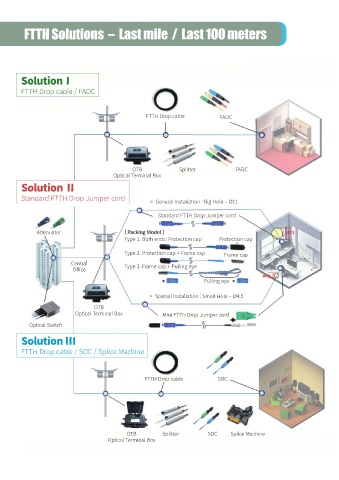

FTTH Solutions – Last mile / Last 100 meters

SolutionⅠ

FTTH Drop cable / FAOC

FTTH Drop cable FAOC

OTB Splitter FAOC
Optical Terminal Box

Solution Ⅱ
Standard FTTH Drop Jumper cord
> General Installation : Big Hole – Ø11

Standard FTTH Drop Jumper cord

Attenuator [ Packing Model ]
Type 1. Both ends: Protection cap Protection cap

Type 2. Protection cap + Frame cap
Frame cap
Central
Type 3. Frame cap + Pulling eye
Office
Pulling eye

> Special Installation : Small Hole – Ø4.5
OTB
Optical Terminal Box Mini FTTH Drop Jumper cord

Optical Switch

Solution Ⅲ

FTTH Drop cable / SOC / Splice Machine

FTTH Drop cable SOC

OTB Splitter SOC Splice Machine
Optical Terminal Box
