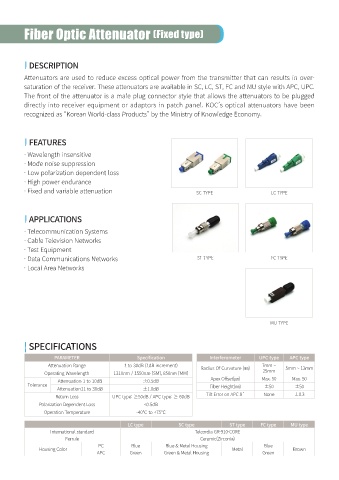

Fiber Optic Attenuator (Fixed type)

| DESCRIPTION

Attenuators are used to reduce excess optical power from the transmitter that can results in over-
saturation of the receiver. These attenuators are available in SC, LC, ST, FC and MU style with APC, UPC.
The front of the attenuator is a male plug connector style that allows the attenuators to be plugged
directly into receiver equipment or adaptors in patch panel. KOC’s optical attenuators have been
recognized as “Korean World-class Products” by the Ministry of Knowledge Economy.

| FEATURES

· Wavelength insensitive
· Mode noise suppression
· Low polarization dependent loss
· High power endurance
· Fixed and variable attenuation SC TYPE LC TYPE

| APPLICATIONS
· Telecommunication Systems
· Cable Television Networks
· Test Equipment
· Data Communications Networks ST TYPE FC TYPE
· Local Area Networks

MU TYPE

| SPECIFICATIONS

PARAMETER Specification Interferometer UPC type APC type
Attenuation Range 1 to 30dB (1dB increment) 7mm ~
Radius Of Curvature (㎜) 5mm ~ 12mm
Operating Wavelength 1310nm / 1550nm [SM], 850nm [MM] 25mm
Apex Offset(㎛) Max. 50 Max. 50
Attenuation 1 to 10dB ±0.5dB
Tolerance Fiber Height(㎚) ±50 ±50
Attenuation11 to 30dB ±1.0dB
Tilt Error on APC 8´ None ±0.3
Return Loss UPC type: ≥50dB / APC type: ≥ 60dB
Polarization Dependent Loss <0.5dB
Operation Temperature -40℃ to +75℃

LC type SC type ST type FC type MU type
International standard Telcordia GR-910-CORE
Ferrule Ceramic(Zirconia)
PC Blue Blue & Metal Housing Blue
Housing Color Metal Brown
APC Green Green & Metal Housing Green
