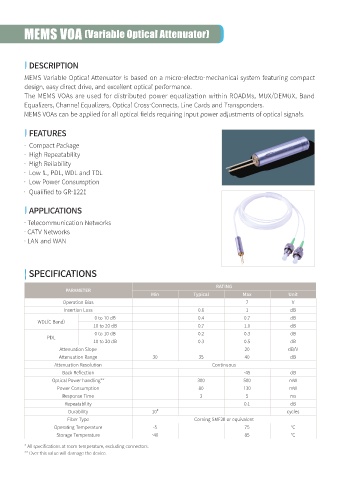

MEMS VOA (Variable Optical Attenuator)

| DESCRIPTION

MEMS Variable Optical Attenuator is based on a micro-electro-mechanical system featuring compact
design, easy direct drive, and excellent optical performance.
The MEMS VOAs are used for distributed power equalization within ROADMs, MUX/DEMUX, Band
Equalizers, Channel Equalizers, Optical Cross-Connects, Line Cards and Transponders.
MEMS VOAs can be applied for all optical fields requiring input power adjustments of optical signals.

| FEATURES

· Compact Package
· High Repeatability
· High Reliability
· Low IL, PDL, WDL and TDL
· Low Power Consumption
· Qualified to GR-1221

| APPLICATIONS
· Telecommunication Networks
· CATV Networks
· LAN and WAN

| SPECIFICATIONS
RATING
PARAMETER
Min Typical Max Unit
Operation Bias 7 V
Insertion Loss 0.6 1 dB
0 to 10 dB 0.4 0.7 dB
WDL(C Band)
10 to 20 dB 0.7 1.0 dB
0 to 10 dB 0.2 0.3 dB
PDL
10 to 20 dB 0.3 0.5 dB
Attenuation Slope 20 dB/V
Attenuation Range 30 35 40 dB
Attenuation Resolution Continuous
Back Reflection -45 dB
Optical Power handling** 300 500 mW
Power Consumption 80 130 mW
Response Time 3 5 ms
Repeatability 0.1 dB
9
Durability 10 cycles
Fiber Type Corning SMF28 or equivalent
Operating Temperature -5 75 ℃
Storage Temperature -40 85 ℃

* All specifications at room temperature, excluding connectors.
** Over this value will damage the device.
