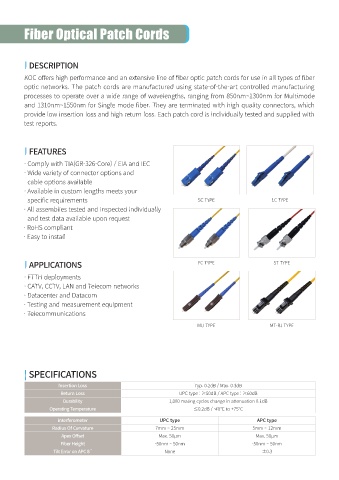

Fiber Optical Patch Cords

| DESCRIPTION

KOC offers high performance and an extensive line of fiber optic patch cords for use in all types of fiber
optic networks. The patch cords are manufactured using state-of-the-art controlled manufacturing
processes to operate over a wide range of wavelengths, ranging from 850nm~1300nm for Multimode
and 1310nm~1550nm for Single mode fiber. They are terminated with high quality connectors, which
provide low insertion loss and high return loss. Each patch cord is individually tested and supplied with
test reports.

| FEATURES

· Comply with TIA(GR-326-Core) / EIA and IEC
· Wide variety of connector options and
cable options available
· Available in custom lengths meets your
specific requirements SC TYPE LC TYPE
· All assemblies tested and inspected individually
and test data available upon request
· RoHS compliant
· Easy to install

| APPLICATIONS FC TYPE ST TYPE
· FTTH deployments
· CATV, CCTV, LAN and Telecom networks
· Datacenter and Datacom
· Testing and measurement equipment
· Telecommunications

MU TYPE MT-RJ TYPE

| SPECIFICATIONS
Insertion Loss Typ. 0.2dB / Max. 0.3dB
Return Loss UPC type : ≥50dB / APC type : ≥60dB
Durability 1,000 mating cycles change in attenuation 0.1dB
Operating Temperature ≤0.2dB / -40℃ to +75℃

Interferometer UPC type APC type
Radius Of Curvature 7mm ~ 25mm 5mm ~ 12mm
Apex Offset Max. 50μm Max. 50μm
Fiber Height -50nm ~ 50nm -50nm ~ 50nm
Tilt Error on APC 8´ None ±0.3
