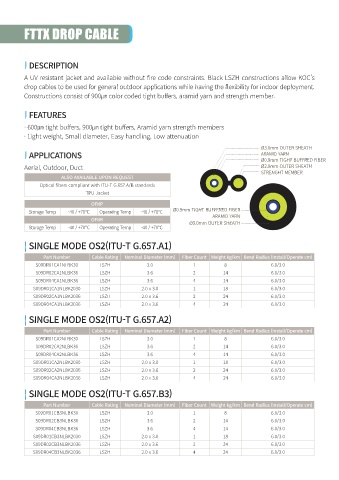

FTTX DROP CABLE

| DESCRIPTION

A UV resistant jacket and available without fire code constraints. Black LSZH constructions allow KOC’s
drop cables to be used for general outdoor applications while having the flexibility for indoor deployment.
Constructions consist of 900㎛ color coded tight buffers, aramid yarn and strength member.

| FEATURES

· 600㎛ tight buffers, 900㎛ tight buffers, Aramid yarn strength members
· Light weight, Small diameter, Easy handling, Low attenuation
Ø3.0mm OUTER SHEATH
| APPLICATIONS ARAMID YARN
Ø0.9mm TIGHT BUFFRED FIBER
Aerial, Outdoor, Duct Ø2.0mm OUTER SHEATH
STRENGHT MEMBER
ALSO AVAILABLE UPON REQUEST
Optical fibers compliant with ITU-T G.657.A/B standards
TPU Jacket
OFNP
Ø0.9mm TIGHT BUFFERED FIBER
Storage Temp -40 / +70℃ Operating Temp -40 / +70℃
ARAMID YARN
OFNR
Ø3.0mm OUTER SHEATH
Storage Temp -40 / +70℃ Operating Temp -40 / +70℃
| SINGLE MODE OS2(ITU-T G.657.A1)

Part Number Cable Rating Nominal Diameter (mm) Fiber Count Weight kg/km Bend Radius (Install/Operate cm)
S09DR01CA1NLBK30 LSZH 3.0 1 8 6.0/3.0
S09DR02CA1NLBK36 LSZH 3.6 2 14 6.0/3.0
S09DR04CA1NLBK36 LSZH 3.6 4 14 6.0/3.0
S09DR01CA1NLBK2030 LSZH 2.0 x 3.0 1 18 6.0/3.0
S09DR02CA1NLBK2036 LSZH 2.0 x 3.6 2 24 6.0/3.0
S09DR04CA1NLBK2036 LSZH 2.0 x 3.6 4 24 6.0/3.0

| SINGLE MODE OS2(ITU-T G.657.A2)
Part Number Cable Rating Nominal Diameter (mm) Fiber Count Weight kg/km Bend Radius (Install/Operate cm)
S09DR01CA2NLBK30 LSZH 3.0 1 8 6.0/3.0
S09DR02CA2NLBK36 LSZH 3.6 2 14 6.0/3.0
S09DR04CA2NLBK36 LSZH 3.6 4 14 6.0/3.0
S09DR01CA2NLBK2030 LSZH 2.0 x 3.0 1 18 6.0/3.0
S09DR02CA2NLBK2036 LSZH 2.0 x 3.6 2 24 6.0/3.0
S09DR04CA2NLBK2036 LSZH 2.0 x 3.6 4 24 6.0/3.0

| SINGLE MODE OS2(ITU-T G.657.B3)
Part Number Cable Rating Nominal Diameter (mm) Fiber Count Weight kg/km Bend Radius (Install/Operate cm)
S09DR01CB3NLBK30 LSZH 3.0 1 8 6.0/3.0
S09DR02CB3NLBK36 LSZH 3.6 2 14 6.0/3.0
S09DR04CB3NLBK36 LSZH 3.6 4 14 6.0/3.0
S09DR01CB3NLBK2030 LSZH 2.0 x 3.0 1 18 6.0/3.0
S09DR02CB3NLBK2036 LSZH 2.0 x 3.6 2 24 6.0/3.0
S09DR04CB3NLBK2036 LSZH 2.0 x 3.6 4 24 6.0/3.0
