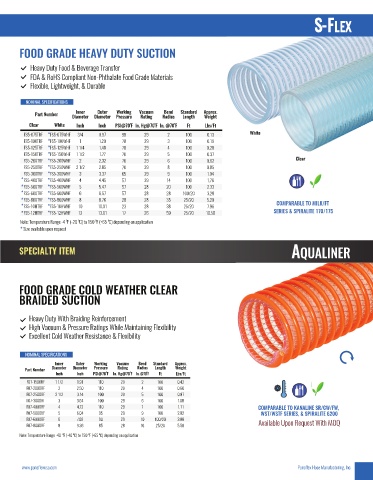

S-FLEX
S-FLEX

FOOD GRADE HEAVY DUTY SUCTION

Heavy Duty Food & Beverage Transfer
FDA & RoHS Compliant Non-Phthalate Food Grade Materials
Flexible, Lightweight, & Durable

NOMINAL SPECIFICATIONS
Working
Outer
Inner
Bend
Part Number Diameter Diameter Pressure Vacuum Radius Standard Approx.
Rating
Weight
Length
Clear White Inch Inch PSI@70 F O In. Hg@70 F In. @70 F Ft Lbs/Ft
O
O
FS5-075TRF *FS5-075WHF 3/4 0.97 98 29 2 100 0.13 White
FS5-100TRF *FS5-100WHF 1 1.20 78 29 3 100 0.19
FS5-125TRF *FS5-125WHF 1 1/4 1.48 78 29 4 100 0.28
FS5-150TRF *FS5-150WHF 1 1/2 1.77 70 29 5 100 0.37
FS5-200TRF *FS5-200WHF 2 2.32 70 29 6 100 0.62 Clear
FS5-250TRF *FS5-250WHF 2 1/2 2.85 70 29 8 100 0.85
FS5-300TRF *FS5-300WHF 3 3.37 65 29 9 100 1.04
* FS5-400TRF *FS5-400WHF 4 4.45 57 29 14 100 1.76
* FS5-500TRF *FS5-500WHF 5 5.47 57 28 20 100 2.33
* FS5-600TRF *FS5-600WHF 6 6.57 57 28 28 100/20 3.28
* FS5-800TRF *FS5-800WHF 8 8.76 28 28 35 25/20 5.20
* FS5-10HTRF *FS5-10HWHF 10 10.91 23 28 38 25/20 7.96 COMPARABLE TO MILK/FT
* FS5-12HTRF *FS5-12HWHF 12 13.01 17 26 59 25/20 10.58 SERIES & SPIRALITE 170/175
Note: Temperature Range -4 F (-20 C) to 150 F (+65 C) depending on application
O
O
O
O
* Size available upon request
SPECIALTY ITEM AQUALINER

FOOD GRADE COLD WEATHER CLEAR
BRAIDED SUCTION

Heavy Duty With Braiding Reinforcement
High Vacuum & Pressure Ratings While Maintaining Flexibility
Excellent Cold Weather Resistance & Flexibility

NOMINAL SPECIFICATIONS
Inner Outer Working Vacuum Bend Standard Approx.
Part Number Diameter Diameter Pressure Rating Radius Length Weight
Inch Inch PSI@70 F O In. Hg@70 F In. @70 F O Ft Lbs/Ft
O
F07-150ORF 1 1/2 1.91 110 29 2 100 0.42
F07-200ORF 2 2.50 110 29 4 100 0.60
F07-250ORF 2 1/2 3.14 100 29 5 100 0.87
F07-300ORF 3 3.64 100 29 6 100 1.08
F07-400ORF 4 4.72 110 29 7 100 1.71 COMPARABLE TO KANALINE SR/CW/FW,
F07-500ORF 5 6.04 95 29 9 100 2.82 WST/WSTF SERIES, & SPIRALITE 6200
F07-600ORF 6 7.02 90 29 10 100/20 3.88 Available Upon Request With MOQ
F07-800ORF 8 9.36 85 28 16 25/20 5.58
Note: Temperature Range -40 F (-40 C) to 150 F (+65 C) depending on application
O
O
O
O

8 www.ponaflexusa.com Ponaflex Hose Manufacturing, Inc.
