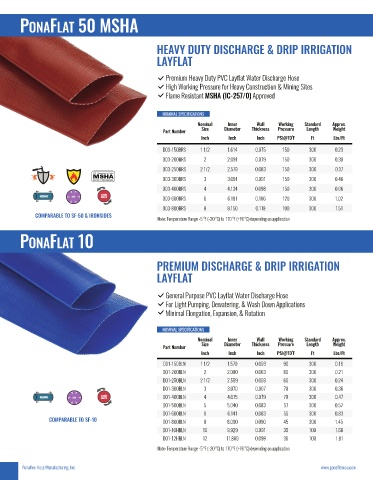

PONAFLAT 50 MSHA

HEAVY DUTY DISCHARGE & DRIP IRRIGATION

LAYFLAT

Premium Heavy Duty PVC Layflat Water Discharge Hose
High Working Pressure for Heavy Construction & Mining Sites
Flame Resistant MSHA (IC-257/0) Approved

NOMINAL SPECIFICATIONS

Nominal Inner Wall Working Standard Approx.
Size Diameter Thickness Pressure Length Weight
Part Number
O
Inch Inch Inch PSI@70 F Ft Lbs/Ft
D03-150BRS 1 1/2 1.614 0.075 150 300 0.23
D03-200BRS 2 2.091 0.079 150 300 0.30
D03-250BRS 2 1/2 2.579 0.083 150 300 0.37
D03-300BRS 3 3.091 0.091 150 300 0.48
D03-400BRS 4 4.134 0.098 150 300 0.66
D03-600BRS 6 6.181 0.106 120 300 1.02
D03-800BRS 8 8.150 0.118 100 300 1.51
COMPARABLE TO SF-50 & IRONSIDES
Note: Temperature Range -5 F (-20 C) to 170 F (+76 C) depending on application
O
O
O
O
PONAFLAT 10

PREMIUM DISCHARGE & DRIP IRRIGATION

LAYFLAT

General Purpose PVC Layflat Water Discharge Hose
For Light Pumping, Dewatering, & Wash Down Applications
Minimal Elongation, Expansion, & Rotation

NOMINAL SPECIFICATIONS
Nominal Inner Wall Working Standard Approx.
Size Diameter Thickness Pressure Length Weight
Part Number
Inch Inch Inch PSI@70 F Ft Lbs/Ft
O
D01-150BLN 1 1/2 1.570 0.059 90 300 0.16
D01-200BLN 2 2.080 0.063 80 300 0.21
D01-250BLN 2 1/2 2.559 0.059 60 300 0.24
D01-300BLN 3 3.070 0.067 70 300 0.36
D01-400BLN 4 4.075 0.079 70 300 0.47
D01-500BLN 5 5.040 0.083 57 300 0.57
D01-600BLN 6 6.141 0.083 50 300 0.83
COMPARABLE TO SF-10 D01-800BLN 8 8.090 0.090 45 300 1.45
D01-10HBLN 10 9.929 0.091 35 100 1.68
D01-12HBLN 12 11.889 0.098 30 100 1.81
Note: Temperature Range -5 F (-20 C) to 170 F (+76 C) depending on application
O
O
O
O
Ponaflex Hose Manufacturing, Inc. www.ponaflexusa.com
