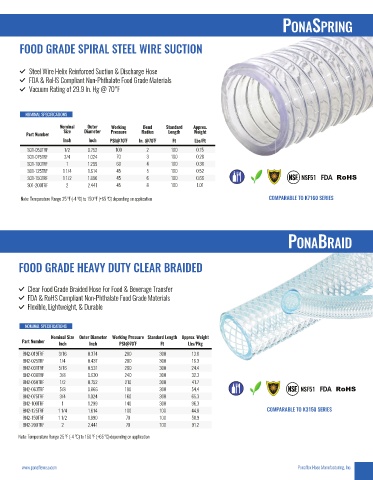

PONASPRING

FOOD GRADE SPIRAL STEEL WIRE SUCTION

Steel Wire Helix Reinforced Suction & Discharge Hose
FDA & RoHS Compliant Non-Phthalate Food Grade Materials
Vacuum Rating of 29.9 In. Hg @ 70°F

NOMINAL SPECIFICATIONS
Nominal Outer Working Bend Standard Approx.
Part Number Size Diameter Pressure Radius Length Weight
Inch Inch PSI@70 F In. @70 F Ft Lbs/Ft
O
O
S01-050TRF 1/2 0.752 100 2 100 0.15
S01-075TRF 3/4 1.024 70 3 100 0.28
S01-100TRF 1 1.299 60 4 100 0.36
S01-125TRF 1 1/4 1.614 45 5 100 0.52
S01-150TRF 1 1/2 1.890 45 6 100 0.66 NSF51
S01-200TRF 2 2.441 45 8 100 1.01

Note: Temperature Range 25 F (-4 C) to 150 F (+65 C) depending on application COMPARABLE TO K7160 SERIES
O
O
O
O

PONABRAID

FOOD GRADE HEAVY DUTY CLEAR BRAIDED

Clear Food Grade Braided Hose For Food & Beverage Transfer
FDA & RoHS Compliant Non-Phthalate Food Grade Materials
Flexible, Lightweight, & Durable

NOMINAL SPECIFICATIONS
Nominal Size Outer Diameter Working Pressure Standard Length Approx. Weight
Part Number Inch Inch PSI@70 F Ft Lbs/Pkg
O
BN2-019TRF 3/16 0.374 280 300 13.6
BN2-025TRF 1/4 0.437 280 300 16.3
BN2-031TRF 5/16 0.531 260 300 24.4
BN2-038TRF 3/8 0.630 240 300 32.3
BN2-050TRF 1/2 0.752 210 300 41.7
BN2-063TRF 5/8 0.866 190 300 54.4 NSF51
BN2-075TRF 3/4 1.024 160 300 65.3
BN2-100TRF 1 1.299 140 300 96.3
BN2-125TRF 1 1/4 1.614 100 100 44.8 COMPARABLE TO K3150 SERIES
BN2-150TRF 1 1/2 1.890 70 100 58.9
BN2-200TRF 2 2.441 70 100 91.2
Note: Temperature Range 25 F (-4 C) to 150 F (+65 C) depending on application
O
O
O
O

www.ponaflexusa.com Ponaflex Hose Manufacturing, Inc.
