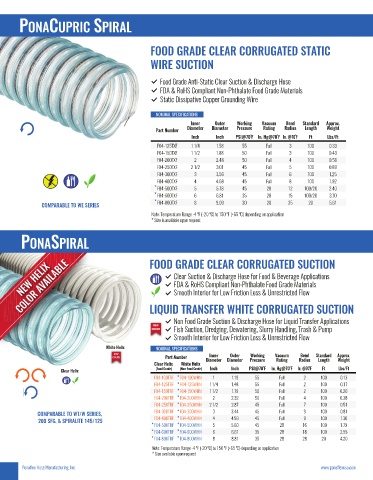

PONACUPRIC SPIRAL

FOOD GRADE CLEAR CORRUGATED STATIC

WIRE SUCTION

Food Grade Anti-Static Clear Suction & Discharge Hose
FDA & RoHS Compliant Non-Phthalate Food Grade Materials
Static Dissipative Copper Grounding Wire

NOMINAL SPECIFICATIONS
Inner Outer Working Vacuum Bend Standard Approx.
Part Number Diameter Diameter Pressure Rating Radius Length Weight
Inch Inch PSI@70 F In. Hg@70 F In. @70 F O Ft Lbs/Ft
O
O
F04-125TXF 1 1/4 1.58 55 Full 3 100 0.33
F04-150TXF 1 1/2 1.88 50 Full 3 100 0.43
F04-200TXF 2 2.48 50 Full 4 100 0.58
F04-250TXF 2 1/2 3.01 45 Full 5 100 0.89
F04-300TXF 3 3.56 45 Full 6 100 1.25
F04-400TXF 4 4.68 45 Full 8 100 1.92
* F04-500TXF 5 5.78 45 28 12 100/20 2.40
* F04-600TXF 6 6.81 35 28 15 100/20 3.70
* F04-800TXF 8 9.09 30 28 25 20 5.61
COMPARABLE TO WE SERIES
Note: Temperature Range -4 F (-20 C) to 150 F (+65 C) depending on application
O
O
O
O
* Size is available upon request
PONASPIRAL FOOD GRADE CLEAR CORRUGATED SUCTION

COLOR AVAILABLE Clear Suction & Discharge Hose for Food & Beverage Applications
NEW HELIX

FDA & RoHS Compliant Non-Phthalate Food Grade Materials
Smooth Interior for Low Friction Loss & Unrestricted Flow

LIQUID TRANSFER WHITE CORRUGATED SUCTION
L
UID
IQ
Non Food Grade Suction & Discharge Hose for Liquid Transfer Applications
Non T
NEW
Fish
COLOR Fish Suction, Dredging, Dewatering, Slurry Handling, Trash & Pump
mo
Smooth Interior for Low Friction Loss & Unrestricted Flow
S
White Helix
W hit e H eli x NOMINAL SPECIFICATIONS
I
S
NAL
I
C
F
N
P
M
E
O
NEW Inner Outer Working Vacuum Bend Standard Approx.
mb
ar
t
Nu
COLOR P Part Number Diameter Diameter Pressure Rating Radius Length Weight
Clear Helix White Helix
Clear Helix (Food Grade) (Non-Food Grade) Inch Inch PSI@70 F O In. Hg@70 F O In. @70 F O Ft Lbs/Ft
F04-100TRF * F04-100WHN 1 1.19 55 Full 2 100 0.13
F04-125TRF * F04-125WHN 1 1/4 1.48 55 Full 2 100 0.17
F04-150TRF * F04-150WHN 1 1/2 1.79 50 Full 2 100 0.26
F04-200TRF * F04-200WHN 2 2.32 50 Full 4 100 0.38
F04-250TRF * F04-250WHN 2 1/2 2.87 45 Full 7 100 0.51
COMPARABLE TO WT/W SERIES, F04-300TRF * F04-300WHN 3 3.44 45 Full 9 100 0.81
200 SFG, & SPIRALITE 145/125 F04-400TRF * F04-400WHN 4 4.59 45 Full 9 100 1.30
* F04-500TRF * F04-500WHN 5 5.60 45 28 16 100 1.79
* F04-600TRF * F04-600WHN 6 6.61 35 28 18 100 2.55
* F04-800TRF * F04-800WHN 8 8.81 35 28 28 20 4.20
Note: Temperature Range -4 F (-20 C) to 150 F (+65 C) depending on application
O
O
O
O
* Size available upon request
Ponaflex Hose Manufacturing, Inc. www.ponaflexusa.com
