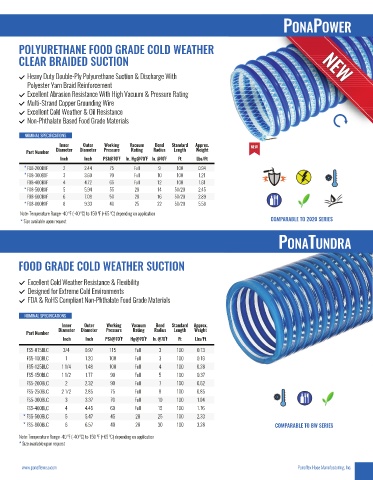

PONAPOWER

POLYURETHANE FOOD GRADE COLD WEATHER
CLEAR BRAIDED SUCTION NEW

Heavy Duty Double-Ply Polyurethane Suction & Discharge With
Polyester Yarn Braid Reinforcement
Excellent Abrasion Resistance With High Vacuum & Pressure Rating
Multi-Strand Copper Grounding Wire
Excellent Cold Weather & Oil Resistance
Non-Phthalate Based Food Grade Materials

NOMINAL SPECIFICATIONS
Inner Outer Working Vacuum Bend Standard Approx. NEW
Part Number Diameter Diameter Pressure Rating Radius Length Weight
Inch Inch PSI@70 F In. Hg@70 F In. @70 F O Ft Lbs/Ft
O
O
* F08-200BXF 2 2.44 75 Full 9 100 0.94
*
* F08-300BXF 3 3.60 70 Full 10 100 1.21
F08-400BXF 4 4.72 65 Full 12 100 1.61
* F08-500BXF 5 5.94 55 28 14 50/20 2.45
F08-600BXF 6 7.09 50 28 16 50/20 2.89
* F08-800BXF 8 9.33 40 25 22 50/20 5.58
Note: Temperature Range -40 F (-40 C) to 150 F (+65 C) depending on application
O
O
O
O
* Size available upon request COMPARABLE TO 2020 SERIES
PONATUNDRA

FOOD GRADE COLD WEATHER SUCTION

Excellent Cold Weather Resistance & Flexibility
Designed for Extreme Cold Environments
FDA & RoHS Compliant Non-Phthalate Food Grade Materials

NOMINAL SPECIFICATIONS
Inner Outer Working Vacuum Bend Standard Approx.
Diameter Diameter Pressure Rating Radius Length Weight
Part Number
Inch Inch PSI@70 F Hg@70 F In. @70 F O Ft Lbs/Ft
O
O
FS5-075BLC 3/4 0.97 115 Full 3 100 0.13
FS5-100BLC 1 1.20 100 Full 3 100 0.19
FS5-125BLC 1 1/4 1.48 100 Full 4 100 0.28
FS5-150BLC 1 1/2 1.77 90 Full 5 100 0.37
FS5-200BLC 2 2.32 90 Full 7 100 0.62
FS5-250BLC 2 1/2 2.85 75 Full 8 100 0.85
FS5-300BLC 3 3.37 70 Full 10 100 1.04
FS5-400BLC 4 4.45 60 Full 15 100 1.76
* FS5-500BLC 5 5.47 45 28 25 100 2.33
* FS5-600BLC 6 6.57 40 28 30 100 3.28 COMPARABLE TO BW SERIES

Note: Temperature Range -40 F (-40 C) to 150 F (+65 C) depending on application
O
O
O
O
* Size available upon request
www.ponaflexusa.com Ponaflex Hose Manufacturing, Inc.
