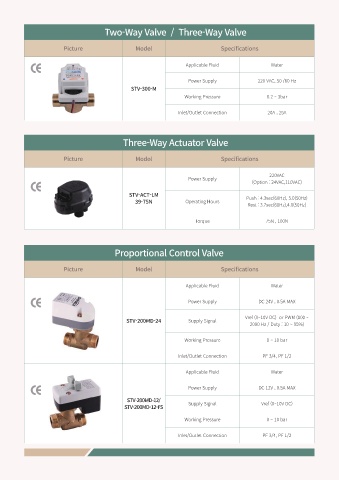

Two-Way Valve / Three-Way Valve
Picture Model Specifications
Applicable Fluid Water
Power Supply 220 VAC, 50 /60 Hz
STV-300-M
Working Pressure 0.2 ~ 3bar
Inlet/Outlet Connection 20A , 25A
Three-Way Actuator Valve
Picture Model Specifications
220VAC
Power Supply
(Option : 24VAC,110VAC)
STV-ACT-LM
Push : 4.3sec(60Hz), 5.0(50Hz)
39-75N Operating Hours
Rest : 3.7sec(60Hz),4.0(50Hz)
Torque 75N , 100N
Proportional Control Valve
Picture Model Specifications
Applicable Fluid Water
Power Supply DC 24V , 0.5A MAX
Vref (0~10V DC) or PWM (100 ~
STV-200MD-24 Supply Signal
2000 Hz / Duty : 10 ~ 95%)
Working Pressure 0 ~ 10 bar
Inlet/Outlet Connection PF 3/4, PF 1/2
Applicable Fluid Water
Power Supply DC 12V , 0.5A MAX
STV-200MD-12/
Supply Signal Vref (0~10V DC)
STV-200MD-12-FS
Working Pressure 0 ~ 10 bar
Inlet/Outlet Connection PF 3/4, PF 1/2
