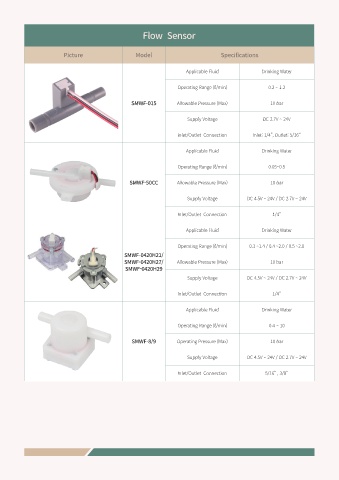

Flow Sensor

Picture Model Specifications

Applicable Fluid Drinking Water

Operating Range (ℓ/min) 0.2 ~ 1.2

SMWF-015 Allowable Pressure (Max) 10 bar

Supply Voltage DC 2.7V ~ 24V

Inlet/Outlet Connection Inlet: 1/4”, Outlet: 5/16”

Applicable Fluid Drinking Water

Operating Range (ℓ/min) 0.05~0.5

SMWF-50CC Allowable Pressure (Max) 10 bar

Supply Voltage DC 4.5V ~ 24V / DC 2.7V ~ 24V

Inlet/Outlet Connection 1/4”

Applicable Fluid Drinking Water

Operating Range (ℓ/min) 0.3 ~1.4 / 0.4 ~2.0 / 0.5 ~2.0
SMWF-0420H21/
SMWF-0420H27/ Allowable Pressure (Max) 10 bar
SMWF-0420H29
Supply Voltage DC 4.5V ~ 24V / DC 2.7V ~ 24V

Inlet/Outlet Connection 1/4”

Applicable Fluid Drinking Water

Operating Range (ℓ/min) 0.4 ~ 10

SMWF-8/9 Operating Pressure (Max) 10 bar

Supply Voltage DC 4.5V ~ 24V / DC 2.7V ~ 24V

Inlet/Outlet Connection 5/16” , 3/8”
