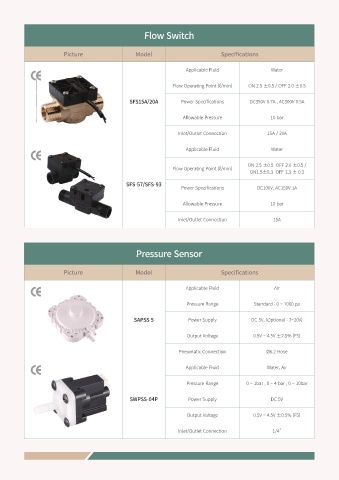

Flow Switch
Picture Model Specifications
Applicable Fluid Water
Flow Operating Point (ℓ/min) ON 2.5 ±0.5 / OFF 2.0 ±0.5
SFS15A/20A Power Specifications DC350V 0.7A , AC300V 0.5A
Allowable Pressure 10 bar
Inlet/Outlet Connection 15A / 20A
Applicable Fluid Water
ON 2.5 ±0.5 OFF 2.0 ±0.5 /
Flow Operating Point (ℓ/min)
ON1.5±0.3 OFF 1.3 ± 0.3
SFS-57/SFS-93
Power Specifications DC100V, AC150V 1A
Allowable Pressure 10 bar
Inlet/Outlet Connection 15A
Pressure Sensor
Picture Model Specifications
Applicable Fluid Air
Pressure Range Standard : 0 ~ 1000 pa
SAPSS 5 Power Supply DC 5V, (Optional : 7~20V)
Output Voltage 0.5V ~ 4.5V ±2.5% (FS)
Pneumatic Connection Ø6.2 Hose
Applicable Fluid Water, Air
Pressure Range 0 ~ 1bar , 0 ~ 4 bar , 0 ~ 10bar
SWPSS-04P Power Supply DC 5V
Output Voltage 0.5V ~ 4.5V ±0.5% (FS)
Inlet/Outlet Connection 1/4”
