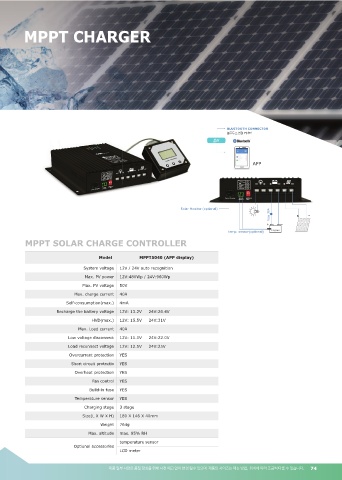

MPPT CHARGER

BLUETOOTH CONNECTOR
࠶ܖైझ োѾ ழ֏ఠ
࠶ܖైझ োѾ ழ֏ఠ
আࡪ

APP

Solar Monitor (optional)
fuse 30A + + -

+ -
temp. sensor(optional) 12V/24V
MPPT SOLAR CHARGE CONTROLLER

Model MPPT5040 (APP display)
System voltage 12V / 24V auto recognition
Max. PV power 12V:480Wp / 24V:960Wp
Max. PV voltage 50V
Max. charge current 40A
Self-consumption(max.) 4mA
Recharge the battery voltage 12V: 13.2V 24V:26.4V
HVD(max.) 12V: 15.5V 24V:31V
Max. Load current 40A
Low voltage disconnect 12V: 11.0V 24V:22.0V
Load reconnect voltage 12V: 12.5V 24V:25V
Overcurrent protection YES
Short circuit protectio YES
Overheat protection YES
Fan control YES
Build-in fuse YES
Temperature sensor YES
Charging stage 3 stage
Size(L X W X H) 180 X 146 X 40mm
Weight 764g
Max. altitude max. 95% RH
temperature sensor
Optional accessories
LCD meter
