Page 79 - GSP Catalogue

पܻ௑ ৬੉য

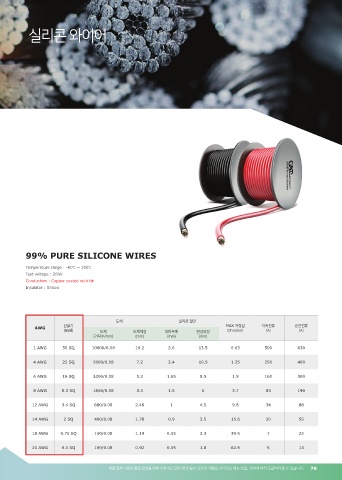

99% PURE SILICONE WIRES

Temperature range : -60 ~ 200
Test voltage : 200V
Conductors : Copper coated with tin
Insulator : Silicon

ب୓ पܻ௑ ੺ো
AWG ࢶҸӝ MAX ੷೦ч ૑ࣘ੹ܨ ࣽр੹ܨ
ɑ ب୓ ب୓૒҃ ৻ೖفԋ ৮ࢿ৻҃ IN LN " "
оׯࣻ NN NN NN NN
1 AWG 50 SQ 10000/0.08 10.2 2.6 13.5 0.63 500 630

4 AWG 25 SQ 5000/0.08 7.2 2.4 10.5 1.25 250 400

6 AWG 16 SQ 3200/0.08 5.2 1.65 8.5 1.9 160 300

8 AWG 8.3 SQ 1650/0.08 3.5 1.5 6 3.7 83 190

12 AWG 3.4 SQ 680/0.08 2.48 1 4.5 9.8 34 88

14 AWG 2 SQ 400/0.08 1.78 0.9 3.5 15.6 20 55

18 AWG 0.75 SQ 150/0.08 1.19 0.55 2.3 39.5 7 22

20 AWG 0.5 SQ 100/0.08 0.92 0.55 1.8 62.5 5 13

77 ઁಿ ੌࠗ ࢎন਷ ಿ૕ ೱ࢚ਸ ਤ೧ ࢎ੹ ৘Ҋ হ੉ ߸҃ ؼࣻ ੓ਵݴ ઁಿ੄ ࢎ੉ૉח ੤ח ߑߨ ਤ஖ী ٮۄ ઑӘঀ ׮ܳ ࣻ ੓णפ׮ 78
