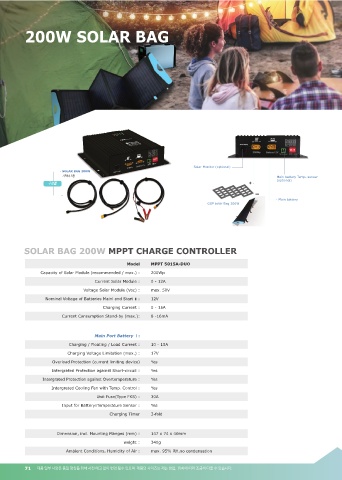

200W SOLAR BAG
Solar Monitor (optional)
SOLAR BAG 200W
ழఫఠ ઙ Main battery Temp. senser
ёౝ + (optional)
-
Main battery
GSP solar Bag 200W
GSP solar Bag 200W
SOLAR BAG 200W MPPT CHARGE CONTROLLER
Model MPPT 5015A-DUO
Capacity of Solar Module (recommended / max.) : 200Wp
Current Solar Module : 0 - 12A
Voltage Solar Module (Voc) : max. 50V
Nominal Voltage of Batteries Mainl and Start ij : 12V
Charging Current : 0 - 15A
Current Consumption Stand-by (max.): 8 -16mA
Main Port Battery ˺
Charging / Floating / Load Current : 10 - 15A
Charging Voltage Limitation (max.) : 17V
Overload Protection (current limiting device) Yes
Intergrated Protection against Short-circuit : Yes
Intergrated Protection against Overtemperature : Yes
Intergrated Cooling Fan with Temp. Control : Yes
Unit Fuse(Type FKS) : 30A
Input for BatteryIJTemperature Sensor : Yes
Charging Timer 3-fold
Dimension, incl. Mounting Flanges (mm) : 147 x 74 x 40mm
weight : 340g
Ambient Conditions, Humidity of Air : max. 95% RH,no condensation
