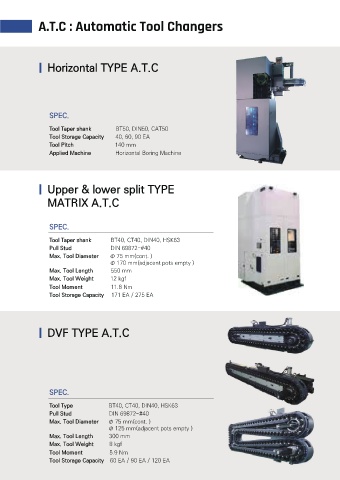

A.T.C : Automatic Tool Changers

Horizontal TYPE A.T.C

SPEC.

Tool Taper shank BT50, DIN50, CAT50
Tool Storage Capacity 40, 60, 90 EA
Tool Pitch 140 mm
Applied Machine Horizontal Boring Machine

Upper & lower split TYPE

MATRIX A.T.C

SPEC.
Tool Taper shank BT40, CT40, DIN40, HSK63
Pull Stud DIN 69872-#40
Max. Tool Diameter 75 mm(cont. )
170 mm(adjacent pots empty )
Max. Tool Length 550 mm
Max. Tool Weight 12 kgf
Tool Moment 11.8 Nm
Tool Storage Capacity 171 EA / 275 EA

DVF TYPE A.T.C

SPEC.

Tool Type BT40, CT40, DIN40, HSK63
Pull Stud DIN 69872-#40
Max. Tool Diameter 75 mm(cont. )
125 mm(adjacent pots empty )
Max. Tool Length 300 mm
Max. Tool Weight 8 kgf
Tool Moment 5.9 Nm
Tool Storage Capacity 60 EA / 90 EA / 120 EA
