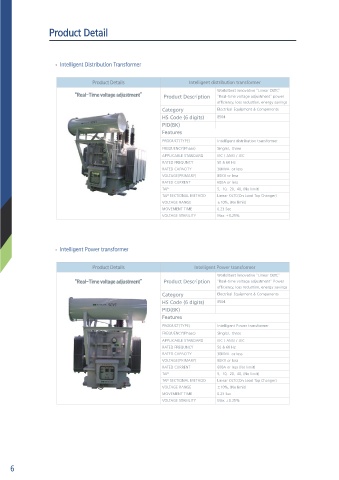

Product Detail Product Detail

Smart Transformer
Intelligent Distribution Transformer

Product Details Smart Transformer
Product Details Intelligent distribution transformer
World best innovative "Linear OLTC"
World best innovative "Linear OLTC" “Real-Time voltage adjustment” Product Description "Real-Time voltage adjustment" Power
“Real-Time voltage adjustment” Product Description "Real-time voltage adjustment" power efficiency, loss reduction, energy savings
efficiency, loss reduction, energy savings
Category Electrical Equipment & Components
Category Electrical Equipment & Components HS Code (6 digits) 8504
HS Code (6 digits) 8504 PID(BK)
PID(BK) Features
Features
PRODUCT(TYPE) Smart Transformer
PRODUCT(TYPE) Intelligent distribution transformer
FREQUENCY(Phase) SingleI, three
FREQUENCY(Phase) SingleI, three
APPLICABLE STANDARD IEC / ANSI / JEC
APPLICABLE STANDARD IEC / ANSI / JEC
RATED FREQUNCY 50 & 60 Hz
RATED FREQUNCY 50 & 60 Hz
RATED CAPACITY 30MVA or less
RATED CAPACITY 30MVA or less VOLTAGE(PRIMARY) 80KV or less
VOLTAGE(PRIMARY) 80KV or less
RATED CURRENT 600A or less(No limit)
RATED CURRENT 600A or less
TAP 5, 10, 20, 40, (No limit)
TAP 5, 10, 20, 40, (No limit) TAP SECTIONAL METHOD Linear OLTC(On Load Tap Changer)
TAP SECTIONAL METHOD Linear OLTC(On Load Tap Changer)
VOLTAGE RANGE ±10%, (No limit)
VOLTAGE RANGE ±10%, (No limit)
MOVEMENT TIME 0.23 Sec
MOVEMENT TIME 0.23 Sec VOLTAGE STABILITY Max ±0.25%
VOLTAGE STABILITY Max ±0.25%

Vision
Intelligent Power transformer

Product Details Intelligent Power transformer
World best innovative "Linear OLTC"
“Real-Time voltage adjustment” Product Description "Real-time voltage adjustment" Power Power Transfer, and Distribution Project
efficiency, loss reduction, energy savings
Category Electrical Equipment & Components Distributed Power Project

HS Code (6 digits) 8504 (Solar,Wind, and Small Hydro Pcwer Generations)
PID(BK)

Features Integrated Control Center with Big Data-based Real-Time Control
PRODUCT(TYPE) Intelligent Power transformer
FREQUENCY(Phase) SingleI, three Smart Grid Project

APPLICABLE STANDARD IEC / ANSI / JEC
RATED FREQUNCY 50 & 60 Hz Specific Purpose Project
RATED CAPACITY 30MVA or less
VOLTAGE(PRIMARY) 80KV or less
RATED CURRENT 600A or less (No limit)
TAP 5, 10, 20, 40, (No limit)
TAP SECTIONAL METHOD Linear OLTC(On Load Tap Changer)
VOLTAGE RANGE ±10%, (No limit) Real-Time Voltage Control
MOVEMENT TIME 0.23 Sec
VOLTAGE STABILITY Max ±0.25%

Core Technology of Green New Deal Policy
