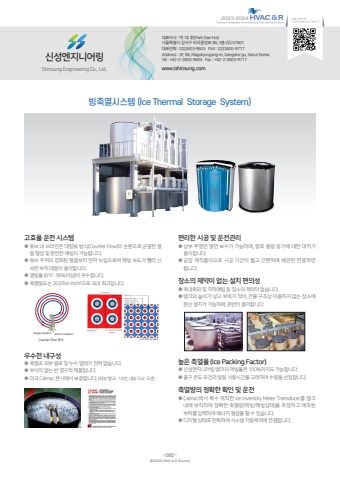

+095+@2023/24HVAC&RDirectory대표이사박대휘(ParkDae-Hui)서울특별시강서구마곡중앙로863층(우)07801대표전화02)2600-9605FAX02)2600-9717Address3F,86Magokjungang-roGangseo-guSeoulKoreaTel+82-2-2600-9605Fax+82-2-2600-9717wwwishinsungcom신성엔지니어링ShinsungEngineeringCoLtd빙축열시스템(IceThermalStorageSystem)고효율운전시스템●튜브내브라인은대향류방식(CounterFlow)의순환으로균일한얼음형성및완전한해빙이가능합니다●튜브주위의경화된얼음부터먼저녹임으로써해빙속도가빨라신속한부하대응이용이합니다●결빙율(IPF95%이상)이우수합니다●축열밀도는205Ton-hr/㎥으로국내최고입니다우수한내구성●축열조외부결로및누수염려가전혀없습니다●부식이없는반영구적제품입니다●미국Calmac본사에서보증합니다(외부탱크10년내부Coil5년)편리한시공및운전관리●상부뚜껑만열면보수가가능하며향후용량증가에대한대처가용이합니다●공장제작품이므로시공기간이짧고간편하며배관만연결하면됩니다장소의제약이없는설치편의성●옥내옥·외및지하매립등장소의제약이없습니다●탱크의높이가낮고부피가작아건물구조상이용하지않는장소에분산설치가가능하며운반이용이합니다높은축열율(IcePackingFactor)●신성엔지니어링탱크의제빙율은100%까지도가능합니다●출구온도조건과일일사용시간을고려하여수량을선정합니다축열량의정확한확인및운전●Calmac에서특수제작한IceInventoryMeterTransducer를탱크내에부착하여정확한축열량(제빙/해빙상태)을측정하고예측된부하를입력하여에너지절감을할수있습니다●디지털상태로판독하여시스템자동제어에연결합니다SupplyHeadersReturnHeadersCounterFlow방식
