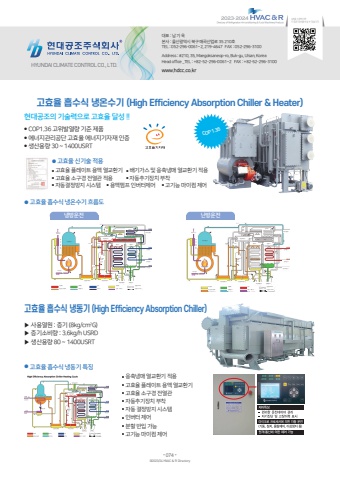

+074+@2023/24HVAC&RDirectory대표남기욱본사울산광역시북구매곡산업로35210호TEL052-296-0061~2219-4647FAX052-296-3100Address#21035Maegoksaneop-roBuk-guUlsanKoreaHeadoffice_TEL+82-52-296-0061~2FAX+82-52-296-3100wwwhdcccokrHYUNDAICLIMATECONTROLCOLTD고효율흡수식냉온수기(HighEfficiencyAbsorptionChiller&Heater)현대공조의기술력으로고효율달성●COP136고위발열량기준제품●에너지관리공단고효율에너지기자재인증●생산용량30~1400USRT●고효율흡수식냉온수기흐름도●고효율흡수식냉동기특징●응축냉매열교환기적용●고효율플레이트용액열교환기●고효율소구경전열관●자동추기장치부착●자동결정방지시스템●인버터제어●분할반입가능●고기능마이컴제어V-3V-29V-30SV-4V-34V-43V-31V-41V-12SV-2V-18V-16녹용액펌프냉매열교환기저온재생기배기가스가스입구고온열교환기녹용액냉매액냉매증기냉수냉각수희용액연료·배가스열림(OPEN)중간농도용액닫힘(CLOSE)고온재생기저온열교환기희용액펌프냉매펌프흡수기증발기응축기냉수출구냉각수출구냉수입구냉각수입구V-42배가스열교환기●고효율신기술적용●고효율플레이트용액열교환기●배기가스및응축냉매열교환기적용●고효율소구경전열관적용●자동추기장치부착●자동결정방지시스템●용액펌프인버터제어●고기능마이컴제어고효율흡수식냉동기(HighEfficiencyAbsorptionChiller)▶사용열원증기(8kg/cm2G)▶증기소비량36kg/hUSRD▶생산용량80~1400USRTV-41V-12SV-2V-16V-30V-7SV-4V-34V-43녹용액펌프저온재생기배기가스가스입구연료·배가스온수열림(OPEN)닫힘(CLOSE)냉매액중간농도용액냉매증기희용액고온재생기V-31고온열교환기저온열교환기희용액펌프냉매펌프냉매열교환기응축기흡수기증발기온수출구냉각수출구온수입구냉각수입구배가스열교환기냉방운전난방운전COP1.36
