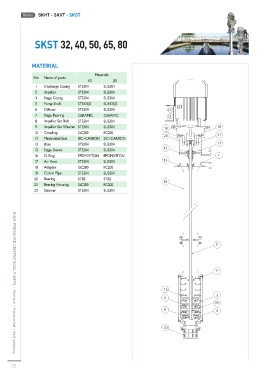

Series SKHTӋSKVTӋSKST
SKST 32, 40, 50, 65, 80
MATERIAL
Materials
No Name of parts
KS JIS
1 Discharge Casing STS304 SUS304
2 Impeller STS304 SUS304
3 Stage Casing STS304 SUS304
5 Pump Shaft STS420J2 SUS420J2
6 Diffuser STS304 SUS304
7 Stage Bearing CERAMIC CERAMIC
8 Impeller Set Bolt STS304 SUS304
9 Impeller Set Washer STS304 SUS304
10 Coupling GC200 FC200
12 Mechanical Seal SIC+CARBON SIC+CARBON
13 Base STS304 SUS304
15 Stage Sleeve STS304 SUS304
16 O-Ring EPDM/VITON EPDM/VITON
17 Air Vent STS304 SUS304
18 Adapter GC200 FC200
19 Colum Pipe STS304 SUS304
20 Bearing STB2 STB2
21 Bearing Housing GC200 FC200
22 Strainer STS304 SUS304
HIGH-PRESSURE CENTRIFUGAL PUMPS - VerticalӋHorizontalӋSelf priming
